Lasers and recievers

lasers and recievers

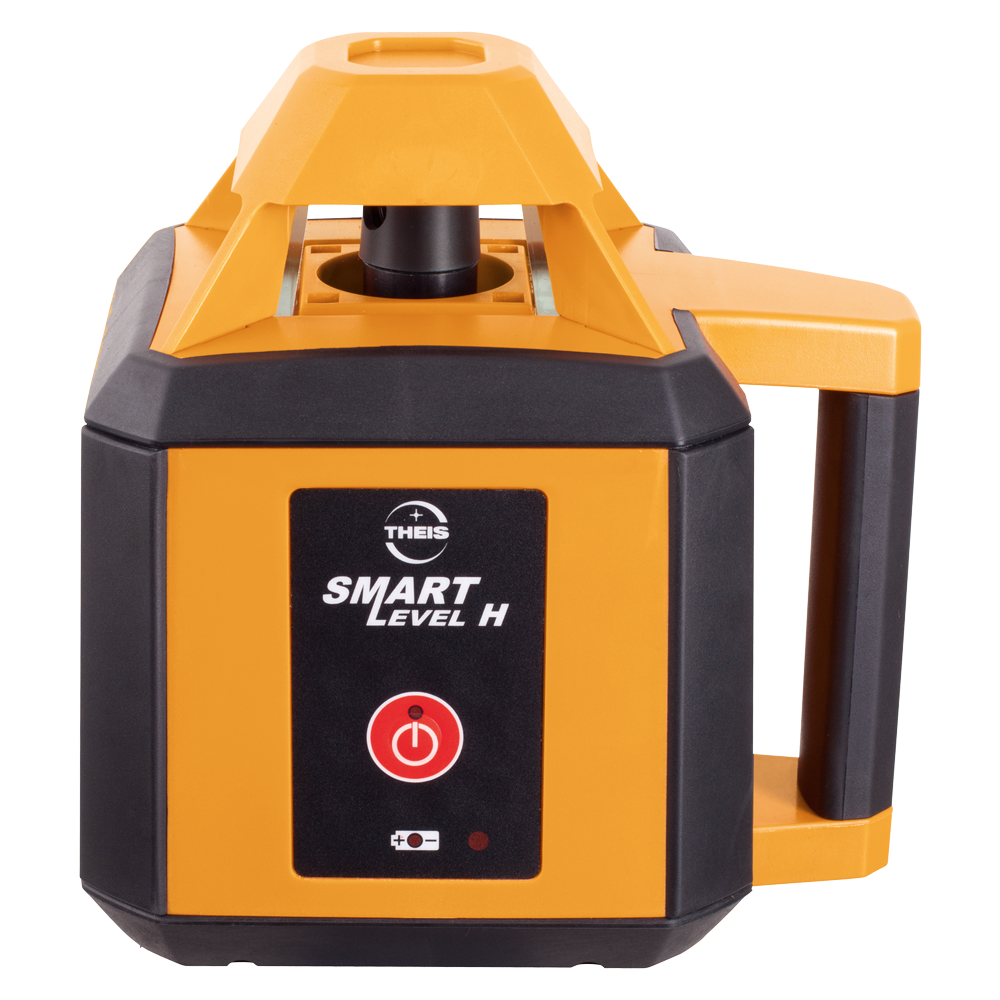

Theis Smart Level H w/reciever TE-6

Theis Smart Level H m/mottaker TE-6

The plan laser with measuring rod and laser stand (FS20) is perfect for precision measurements, with a leveling accuracy of ± 1 mm/10 m and a self-leveling range of ± 5°.

Specifications

Specifications

Contact

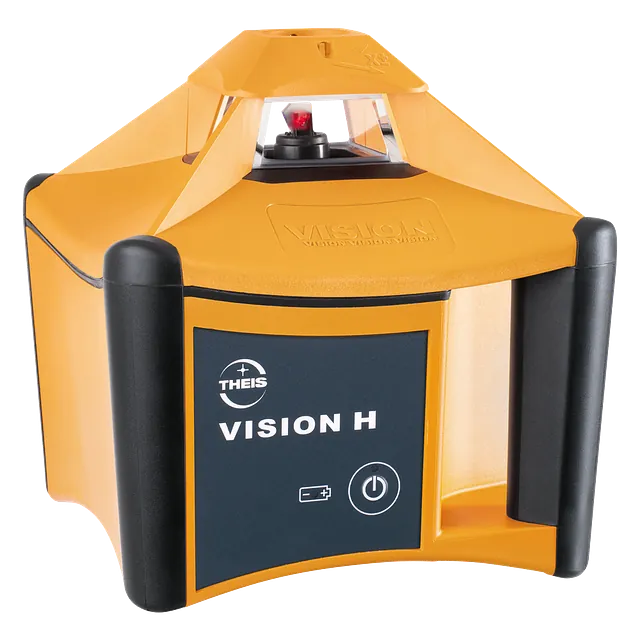

Vision H High Power

Theis Vision H High Power with MTR-125 Receiver is a simple one-button rotary laser with tilt alarm, ideal for precision measurements.

Spesifications

Spesifications

Contact

Vision 1N High Power

Theis Vision 1N High Power with MTR-125 Receiver is a grade laser with automatic monitoring of the laser plane, tilt alarm, and masking function—ideal for precision measurements in demanding conditions.

Spesifications

- Grade on Y-axis: ±10%
- Laser Beam Range: Up to 750 m radius
- Illuminated LCD Display: Yes
- Wavelength: 635 nm
- Remote Control Range: 200 m
- Horizontal Axis: Yes
- Vertical Axis: Yes
- Automatic Prism Adjustment: ±5°
- Accuracy: ±1.5 mm at 30 m
RPM: 0 – 800
- Adjustable Masking Mode: Yes
- Wind Function: Yes
- Backlit Display: Yes
- Charging Time: 6 h
- Protection Rating: IP67
- Operating Temperature: -15 to +50 °C
- Weight: 3 kg

Spesifications

- Grade on Y-axis: ±10%
- Laser Beam Range: Up to 750 m radius
- Illuminated LCD Display: Yes
- Wavelength: 635 nm
- Remote Control Range: 200 m
- Horizontal Axis: Yes
- Vertical Axis: Yes
- Automatic Prism Adjustment: ±5°
- Accuracy: ±1.5 mm at 30 m
RPM: 0 – 800
- Adjustable Masking Mode: Yes
- Wind Function: Yes
- Backlit Display: Yes
- Charging Time: 6 h
- Protection Rating: IP67
- Operating Temperature: -15 to +50 °C
- Weight: 3 kg

Contact

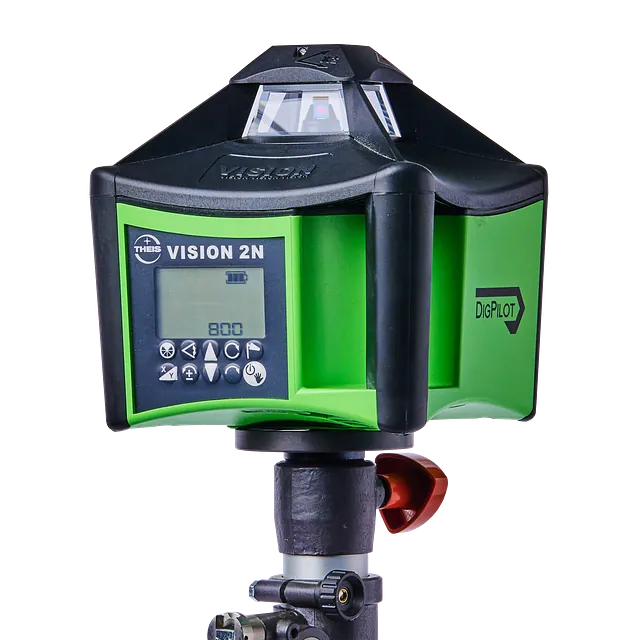

Vision 2N High Power

Vision 2N High Power incl. MTR-125 mm Receiver is a dual-grade laser with vertical functionality, automatic monitoring of the laser plane, tilt alarm, and masking function—perfect for precision measurements in various working conditions.

Spesifications

- Grade on X and Y axis: ±10%
- Laser Beam Range: Up to 750 m radius
- Illuminated LCD - Display: Yes
- Wavelength: 635 nm
- Remote Control Range: 200 m
- Horizontal Axis: Yes
- Vertical Axis: Yes
- Automatic Prism -Adjustment: ±5°
- Accuracy: ±1.5 mm at 30 m
- RPM: 0 – 800
- Adjustable Masking Mode: Yes
- Wind Function: Yes
- Backlit Display: Yes
- Charging Time: 6 h
- Protection Rating: IP67
- Operating Temperature: -15 to +50 °C
- Weight: 3 kg

Spesifications

- Grade on X and Y axis: ±10%
- Laser Beam Range: Up to 750 m radius
- Illuminated LCD - Display: Yes
- Wavelength: 635 nm
- Remote Control Range: 200 m
- Horizontal Axis: Yes
- Vertical Axis: Yes
- Automatic Prism -Adjustment: ±5°
- Accuracy: ±1.5 mm at 30 m
- RPM: 0 – 800
- Adjustable Masking Mode: Yes
- Wind Function: Yes
- Backlit Display: Yes
- Charging Time: 6 h
- Protection Rating: IP67
- Operating Temperature: -15 to +50 °C
- Weight: 3 kg

Contact

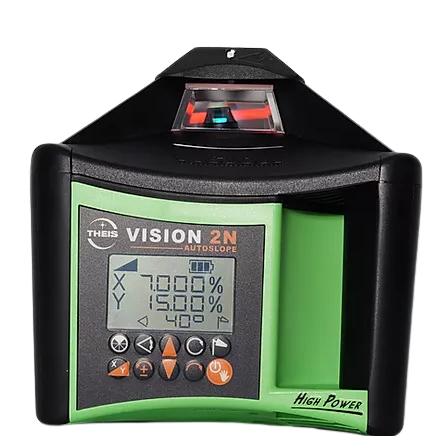

Vision 2N Autoslope, High power

Theis Vision 2N Autoslope, High Power, includes the MTR-125 mm receiver and FB-V remote control.
This is a dual-grade laser with automatic monitoring and adjustment of the laser plane, which electronically supervises the slope plane for immediate correction in case of mechanical or thermal changes. The TILT function is activated in the event of major deviations, and an error message is displayed on the screen.

Spesifications

- Grade on X and Y axis: ±15%
- Laser Beam Range: Up to 750 m radius
- Illuminated LCD Display: Yes
- Wavelength: 635 nm
- Remote Control Range: 200 m
- Horizontal Axis: Yes
- Vertical Axis: Yes
- Automatic Prism Adjustment: ±5°
- Accuracy: ±1.5 mm at 30 m
- RPM: 0 – 1000
- Adjustable Masking Mode: Yes
- Wind Function: Yes
- Backlit Display: Yes
- Charging Time: 6 h
- Protection Rating: IP67
- Operating Temperature: -15 to +50 °C
- Weight: 3 kg
